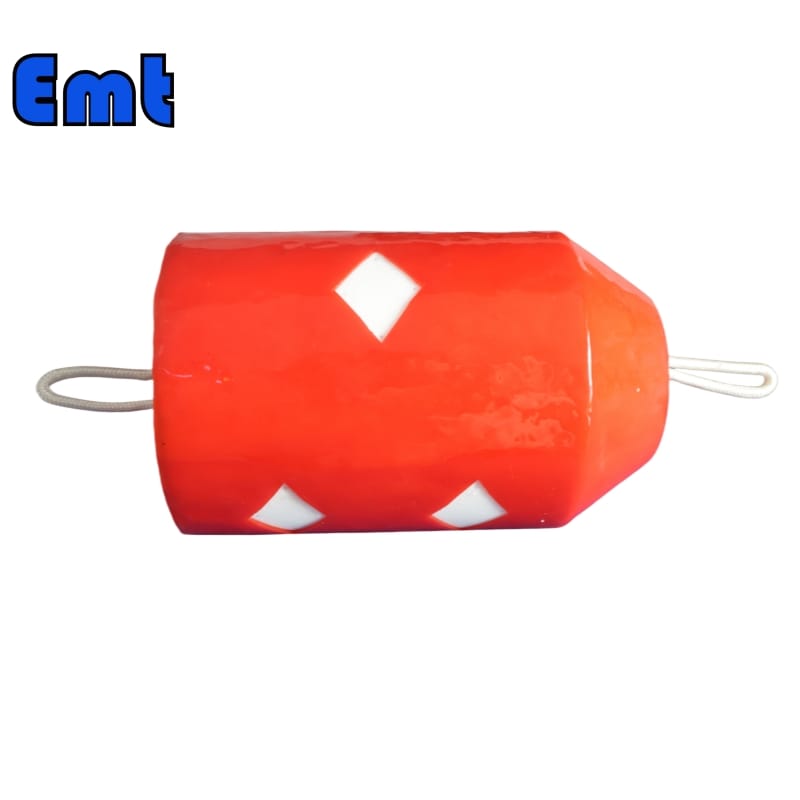

Introduction to Criss-cross Pig

The Coated Criss-cross Pig is crafted from high-quality raw materials using mold foaming techniques, available in densities ranging from 1-2 lbs/ft³ (~16-32 kg/m³) to 8-10 lbs/ft³ (~128-160 kg/m³). This optimal density selection not only imparts high tear resistance but also ensures superior wear resistance. The foam pig features an open-cell structure, enhancing its adsorption capabilities.

Long-term field use has garnered positive feedback due to its tail being coated with a wear-resistant material, which improves both its sealing abilities and cleaning efficacy. This makes it particularly effective for drying, sealing, and cleaning pipelines.

Foam pigs are categorized into coated and bare types. The Coated Criss-cross Pig, which falls under the coated category, involves a polyurethane coating applied over the foam core. This design offers broad utility and significant flexibility, allowing it to conform easily within pipelines and reducing the risk of obstruction. It is particularly adept at removing thick and hard scale deposits, mainly used for routine water removal in gas transmission pipelines. Additionally, it is essential for cleaning pipelines before they are put into operation and for regular wax scraping in oil and gas pipelines.

KEY FEATURES

Lightweight and Flexible: The foam pig is both light and soft, making it exceptionally adept at navigating through pipelines with bends and curves without compromising on performance. This flexibility ensures it can maneuver through complex pipeline architectures efficiently.
Cost-Effective: Utilizing this foam pig for pipeline maintenance is economically advantageous. It offers a low-cost solution that allows for preliminary inspections of the pipeline. This feature makes it an ideal choice for regular maintenance checks, ensuring pipeline integrity without a significant financial investment.
Non-Damaging: One of the most critical aspects of this foam pig is its gentle interaction with the inner walls of the pipeline. It is designed to clean and seal without causing any damage to the pipeline surface. This protective feature helps maintain the structural integrity of the pipeline over time, preventing potential leaks or other issues that could arise from scratches or other damage to the inner wall.
Effective Cleaning and Sealing: The coated surface of the foam pig enhances its cleaning and sealing capabilities. As it moves through the pipeline, it effectively removes debris, scale, and other residues, while also ensuring a tight seal that aids in the drying process. This dual functionality makes it an invaluable tool in pipeline maintenance and operation.
Versatile Use: The foam pig is suitable for a variety of applications, including water removal in gas transmission pipelines, preliminary cleaning before production starts, and regular maintenance like wax scraping in oil and gas pipelines. Its ability to adapt to different tasks and environments makes it a versatile choice for pipeline operators.

Parameters

Advantages of Coated Criss-cross Pig

The Coated Criss-cross Pig offers numerous advantages for pipeline maintenance:

Enhanced Durability: Features robust polyurethane coating for increased wear resistance.
Superior Cleaning Efficiency: Excels at removing tough deposits like scale and wax.
High Flexibility: Navigates bends and complex pipeline configurations easily.
Cost-Effective Operation: Reduces the need for multiple tools and processes.
Non-Damaging to Pipelines: Soft foam does not scratch or damage pipelines.
Versatile Applications: Useful for cleaning, drying, sealing, and inspections.
Good Adsorption Performance: Open-cell foam absorbs liquids and residues effectively.
These features make it an indispensable tool for efficient and safe pipeline operations.

Applications

The Coated Criss-cross Pig is extensively used in the oil and gas industry, particularly for maintaining the hygiene and efficiency of pipelines. Its primary application is in the routine cleaning of pipelines, where it effectively removes accumulated deposits such as wax, scale, and other residues that can impede fluid flow. This ensures that pipelines operate at optimal efficiency, reducing the risk of blockages and maintenance-related downtimes. The pig’s coated surface enhances its scrubbing capabilities, making it a critical tool in the preventive maintenance schedules of pipeline systems.

Another significant application of the Coated Criss-cross Pig is in drying and sealing pipelines. This is crucial before maintenance checks or after repair work. Its ability to tightly seal the pipeline aids in effectively removing moisture. Removing moisture is essential to prevent corrosion and other moisture-related damages. This sealing capability is particularly beneficial in harsh environments. It ensures long-term protection and reliability of the pipeline infrastructure.

Furthermore, the Coated Criss-cross Pig is invaluable during the preliminary inspection phases of pipeline maintenance. By providing a low-cost method for initial diagnostics, it helps identify potential issues before they escalate into major problems. This early detection capability allows for timely interventions, saving costs and maintaining the operational integrity of pipelines. Whether it’s in routine maintenance, detailed inspections, or critical sealing operations, the Coated Criss-cross Pig proves to be an essential component in the comprehensive management of pipeline systems.
